Muratec Motorum M2048TE

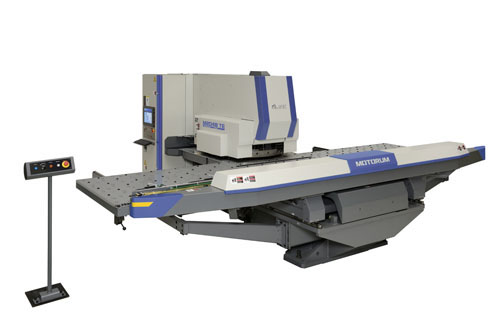

Muratec Motorum Turret Punch Press - M2048TE

Environment-friendly Design

Muratec for the first time in punch press history introduced a brand new concept for ram drice technology, this incorporated a toggle mechanism driven by and AC servo motor. Without the need for hydraulic oil the sheet metal process enable ecological machine operations saving environmental natural resources.

Energy-efficient operation and low running costs

The M2044TE ram servo motor consumes power only during the punching process, this reduces running costs dramatically. The absence of the traditional hydraulic pack negates the hydraulic unit oil maintenance, disposal of oil, and periodic replacement. Thus, creating savings in cost and maintenance down time.

Easy to Operate

This user friendly and simple machine operation does not require a warming up cycle enabling a quick machine start.

Main Specifications:

Punching Capacity	Max Sheet Thickness (Mild Steel)	Max Sheet Size	Max Sheet Size (1 x repo)	No of stations
200kN (20.4 tons)	6.35mm	1250mm x 2500mm	1250mm x 5000mm	28/32

MOTORUM M2048TE

CNC Servo Motor Driven Ram Turret Punch Press

M2048TE

Servo Drive Pioneer Motorum has evolved to a new utilities

Muratec introduced world’s first servo driven punch press in 1994. Since then we our industry leading technology has evolved to meet the next generations needs. Here is the latest in our award winning Motorum series!

New Drive Ram Mechanism

The ram drive of M2048TE has incorporated CFRP in the part of toggle mechanism connected directly to the servomotor making it lighter in weight and more rigid. The new drive mechanism and the replacement of the alternating movement decreases vibration by 65%. In addition, a reduction of motor heat saves energy in cooling and the resuscitation of electric energy when braking.

Rigid Press Frame

Improved stability in the punching process using 12.5% thicker material for the press side frames and
improved stiffness of base component.

Energy Conservation & Low Running Cost

An environment-friendly eco-machine, Motorum uses the energy it needs only at the time of punching, thanks to the servo motor drive mechanism.

Steel Ball and Brush Combination Table

Steel balls are effective for supporting thick work sheets, and brushes are located to keep work sheets flat. This combination table is suitable for thin and thick work sheets.

Crash Sensor

Prevent major damage to the machine. Crash sensors stop the machine when material curves upward toward the turret preventing a collision.

Deburring Operation

One tooling. All round deburring operation (Option)

Deburring and pinching operation using the ball bearing manufactured originally by Muratec. Two bearings from top and bottom sides removes the burr of the edge both sides, upper and lower, of the punched parts simultaneously by pinching the edge of the punched sheet along with the path.

Deburring operation

Main Specifications

Model	M2048TE

Punching capacity	200 kN 20.4 Metric Tons 22.4 US Tons

Maximum sheet thickness	6.35 mm

Maximum sheet size punchable without repositioning (Y x X)	1250 mm x 2500 mm

No. of Turret stations	32 or 28

Hit rate

	1.0 t 25 mm pitch 8.3 mm stroke	285HPM

	1.0 t 05 mm pitch 1.4 mm stroke	900 HPM

Punching accuracy		± 0.1mm
