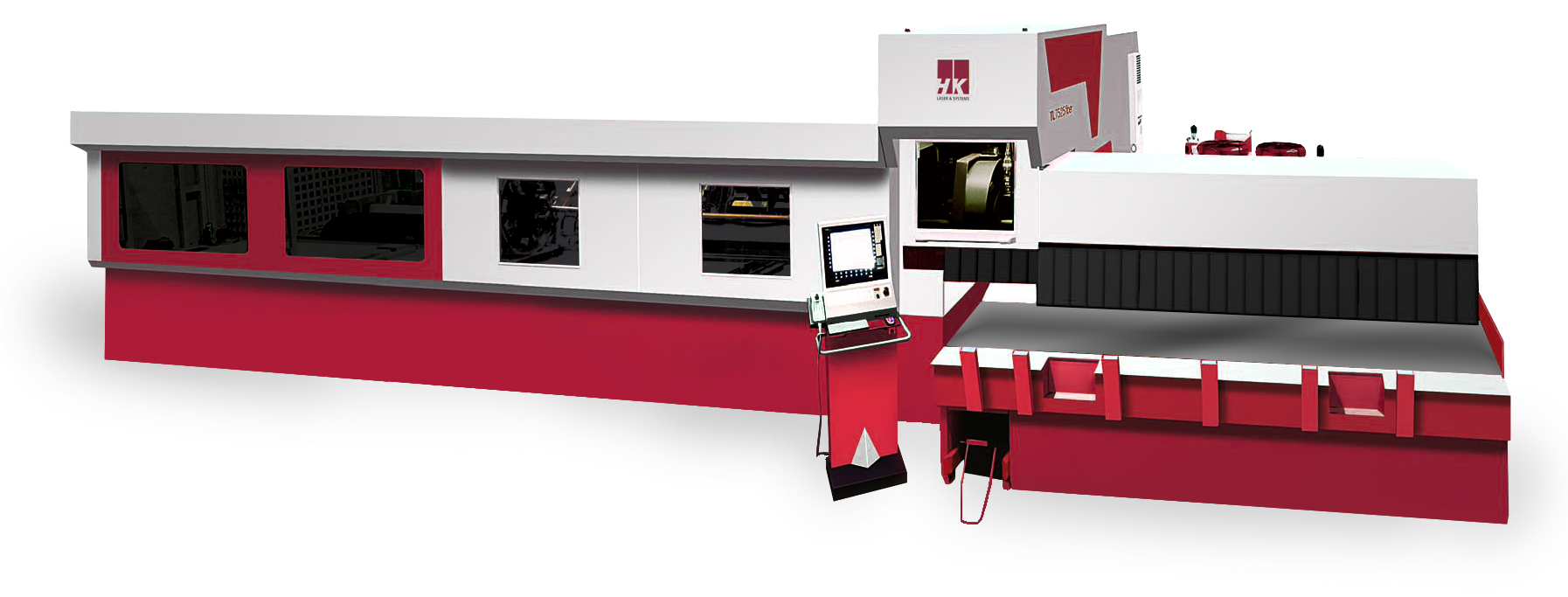

Tube Cutting Fiber Laser - TL6015

Maximum 6,000mm auto loading system
Rotary chuck system
Auto on/off v-support model

CO₂ / Fiber laser mountableCopper and brass tube cutting when fiber laser is mounted

ChuckClamping of various shapes
Transfer max. 100m/min speed
Preventing from sagging with auto on/off v-support

UnloaderAuto sagging prevention function utilized
Separating and collecting small products with folder function

Auto tube bundle loaderLoading and feeding large quantity with auto separation and auto length measurement function

Data:

Maximum Work Area	Maximum Work Size	Minimum Remaining Length	Max. Work Weight	Max. Transfer Speed	Positioning Accuracy	Repeatability
6,000 m	Circle 20~165mm	180mm	150kg	X : 100m/min, Y : 40m/min	+/- 0.2mm	+/- 0.6mm
	Square 20 x 20mm~ 120 x 120mm			Z: 15m/min, A : 120 rpm
	Rectangle 20 x 20mm Outer Diagonal		+/- 0.1mm/3,000mm
	Max. Size 165mm

Cutting Capacity:

Output	Mild Steel	Stainless Steel (Clean Cut)	Aluminium	Copper	Brass
CO₂ 2.5kW	6.4	5	4
Fiber 2.0kW	6.4	5	4	3	5
Fiber 3.0kW	10	6	8	5	5
